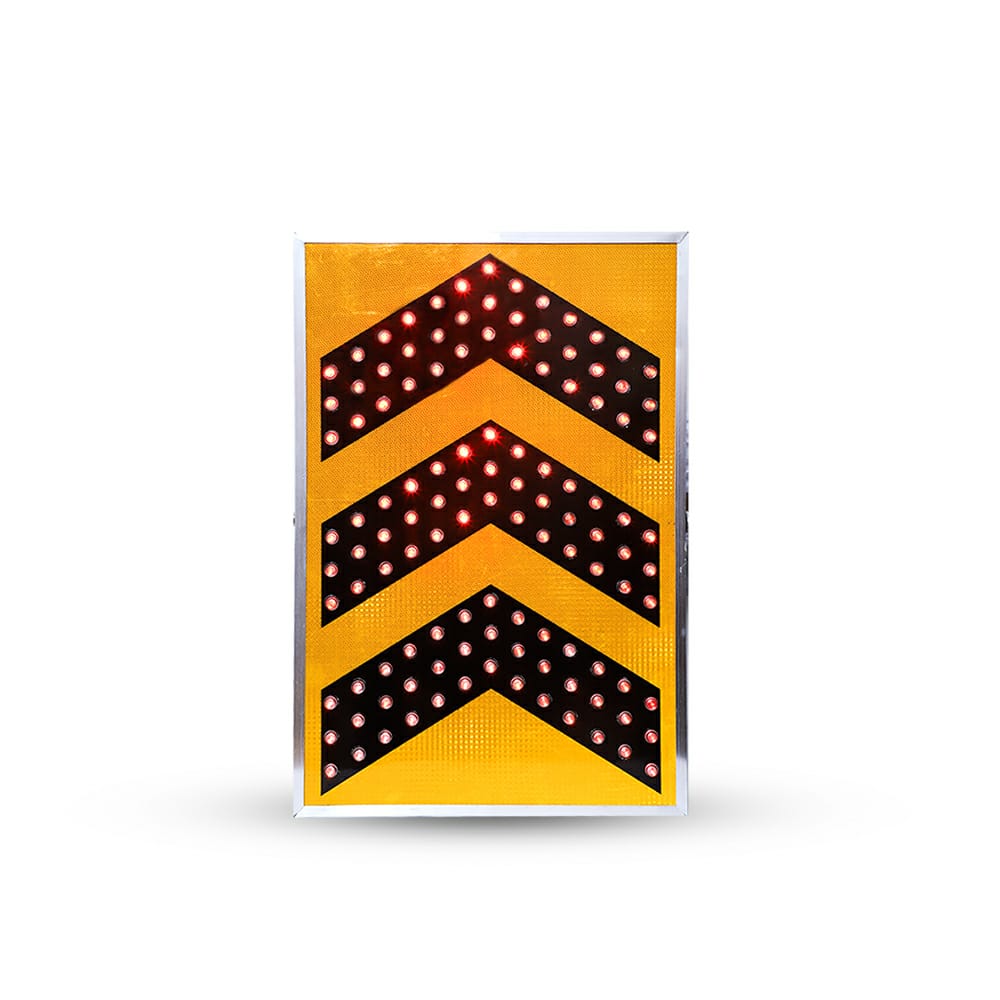

Solar Chevron Light
Model: XSCM-01
Price: Rs. 11750/-
Discount: 5% Discount above 10 pcs.
Warranty: 12 Months
Aakriti Solar with its brand name “Xtreme” is the leading manufacturer, exporter and supplier of high quality Solar Cheverons Boards and Chevron Lights in India.
Application of Solar Cheveron: Solar Cheverons are used for guiding the motorists to warn and change the driving course as required.
Solar panel: 3 watts Mono Crystalline Panel.
Battery: 6 volt / 4.5 AH- C 20.
Sizes Available: (mm) in Solar Arrow Boards
XSCM-01: 900 x 600 x 52
XSCM-02: 750 x 600 x 52
XSCM-03: 600 x 450 x 52
Specifications of Solar Arrow Boards/Solar Cheverons:
• Solar Panel: 450 mAh / 9 V / 4 Watts.
• Battery: Li-Ion 6 volt 4.5 AH. C-10.
• Backup: 108 hours when fully charged.
• LED: 117-130;
• Color: Red, Yellow, Green or White.
• Display thickness: Aluminum Sheet / ACP 2 mm.
• Sheet metal: 600 mm x 900 mm x 53 mm; powder coated.
• Blinking frequency: 40 to 50 per minute as required.
• Reflective tape : High intensity tape of 3 m.
Advantages of Solar Arrow Boards:
• Automatic Flashing at night time.
• Each shining day of charging could last flashing for 180 hours.
• No power cost. Power charge from the sun.
• No wire and no power supply problem.
• Its convenient to install it anywhere.
Materials: The outer of iron covering through yellow baking Powder coating processing, but the maim parts in the display are made of Aluminium Sheet 2 mm.
Working Demonstration:
