Description
USER FARE DISPLAY SCREENS are used on highway toll plazas for displaying the amount deducted on account of using the highway from the motorist by the toll booths.It is a common practice for transparency the motorist should know how much amount is being displayed and deducted by the toll booths as per the agreement between the Government and the booth owners as per different classifications of the motors.Aakriti Solar Pvt Ltd under its brand “Xtreme” is the manufacturer,exporters of UFD’s on Indian National highways. We can in very short time develop and supply most kind of Ufd’s with different protocols used by the toll management companies.

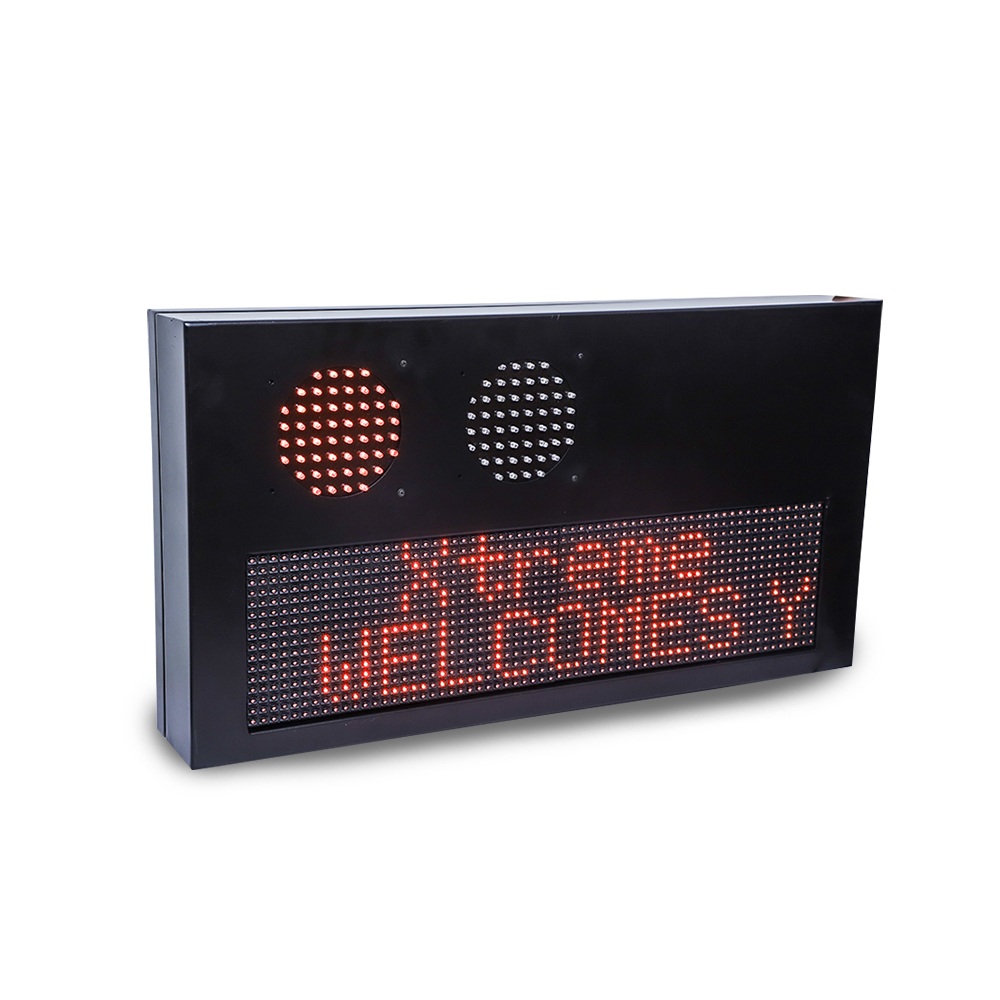

DATA SHEET OF UFD (TYPE -II) Supplementary agreement with traffic light
| Parameters | Specifications |
| DISPLAY | |
| Processor | 32 Bit ARM Controller |
| Source of light | High intensity LEDs |
| Brightness | >3000 cd/m² |
| Viewing distance | >70 meters |
| Display capability | Alpha-numeric |
| Display Style | Stay on and Moving |
| Brightness | Auto/Manual selectable |
| Auto Dimming | Auto dimming adjusts to ambient light level. |
| In built Sensor | Photoelectric sensor, |
| Cabinet Size
Display Area |
750 mm *400mm *110 mm
(640mm x 160mm) + (125mm Dia for Red Light + 125mm Dia for green Light) |
| Number of Lines &Characters | The number of lines and characters can be customized as per the requirement. Maximum 2 Line and 11 Character per line. |
| Character Height | As per requirement (65mm to 155mm) |
| Pixel Pitch | 10mm |
| Display Driving method | Direct current control driving circuit. Driver card of display applies Direct Current Technology. |
| Temperature | -10 C to 60 C |
| MECHANICAL | |
| Housing Material | Mild Steel |
| Front plate Coat | Low reflection black matt finish |
| Finish and Paint | Structure finish with black matt coating |
| Weight | According to size. |
| Alarm-at control room | In case of opening of door, Temperature sensor (Optional) |
| IP Level | IP65 |
| Cabinet Size | 750mmx400mmX100MM |
| ELECTRICAL | |
| Power Supply | Power supply (input power supply); 230V AC 50/60 Hz
Operating Power in the range of 170 VAC to 250 VAC |
| Typical power Consumption | 50Watt |
| Display power supply | SMPS |
| COMMUNICATION | |
| Communication | Communication via RS 232
Optional – Ethernet/RS485 |
| DESIGN | |
| MTBF/Life span | 1,00,000 Hours |
| MTTR | 25 Minutes |
Warranty : 12 months at factory site.
